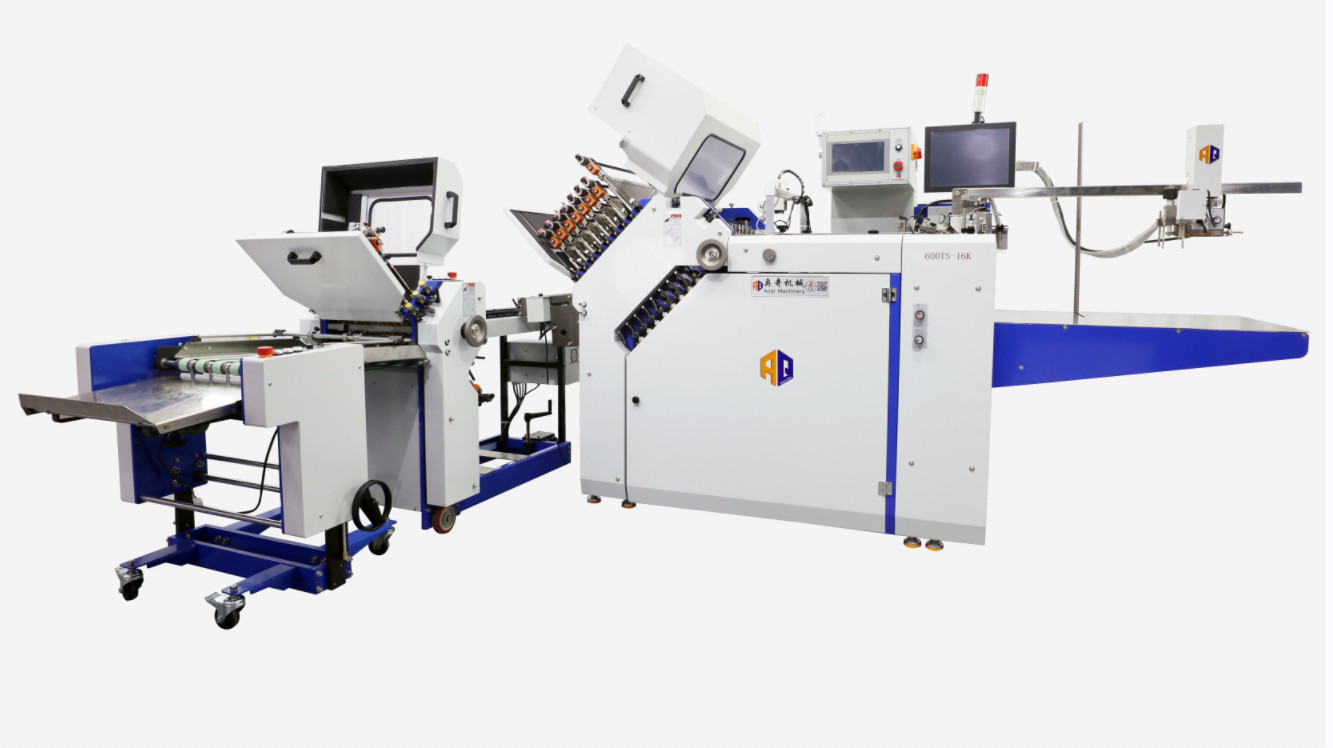

Pile Feeder Large Format Paper Folding Machine For Pharmaceutical Leaflet

Name: Pile Feeder Large Format Paper Folding Machine For Pharmaceutical Leaflet
Brand: AOQI
Price: 1 USD

China Pile Feeder Large Format Paper Folding Machine For Pharmaceutical Leaflet wholesale

Brand Name : AOQI

Model Number : 600TS-16K+4KW

Certification : CE Certificate

Place of Origin : Dongguan City , China

MOQ : 1

Price : Negotiated

Payment Terms : T/T

Delivery Time : 15-20 days

Packaging Details : Export wooden box

Type : Large Format Paper Folding Machine

Product name : Pharmaceutical Outsert systems

Application : pharmaceutical leaflet、cosmetic flyer、user manual fold

Optional equipment : Parallel knife、Pressing unit、Gluing machine、Labeling machine、Vertical stacker

Driving way : Belt driving

Max. infeed paper size : 600*1000mm

Min. infeed paper size : 100*160mm

Speed : 220m/min

Paper thickness range : 40~300g

Voltage : 380V

Warranty : 18 months

PLC Brand : Schneider

Computerized : Yes

Condition : New

Certificate : CE certificate

Contact Now

Pile Feeder Large Format Paper Folding Machine For Pharmaceutical Leaflet Paper Folder

The 600TS paper folding machine is largely utilized for folding various kinds of paper sheets and is especially design for wide-ranging booklet folding. The folder can handle a maximum 600*1000mm sheet .

Machine Specifications

Model	360T/480T	530TS	480TS/600TS
Max.sheet Size	360(750/1000)mm 480(750/1000)mm	530*1000mm	4801000mm 6001000mm
Min.sheet Size	50*105mm	70*120mm	100*160mm
Paper Thickness	30-250g	40-200g	40-300g
Folding Roller Fastest Speed	200/min	220/min	220/min
Folding Knife Max.frequency	500stroke/min	400stroke/min	400stroke/min
Input Power	380v	380v	380v
Power Consumption	2.0-3.75kw	3.1-3.75kw	3.9-4.75kw
Net Weight	500-1500kg	800-1500kg	800-1500kg

Features And Functions

1. Feeding System Adopts Three Holes Sucked Rotor

2. High Performance Sheet-separating Feeder 3.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting
With The Paper

4.Automatic Control Device Of Pile Height

5.Adopt Germany Imported Electric Appliances Of Schneider

6.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input 7.Belt Driving Guarantees Smooth Driving And Low Noise 8.Indentation, Punching , Slitting

9.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled

10.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function

11.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
