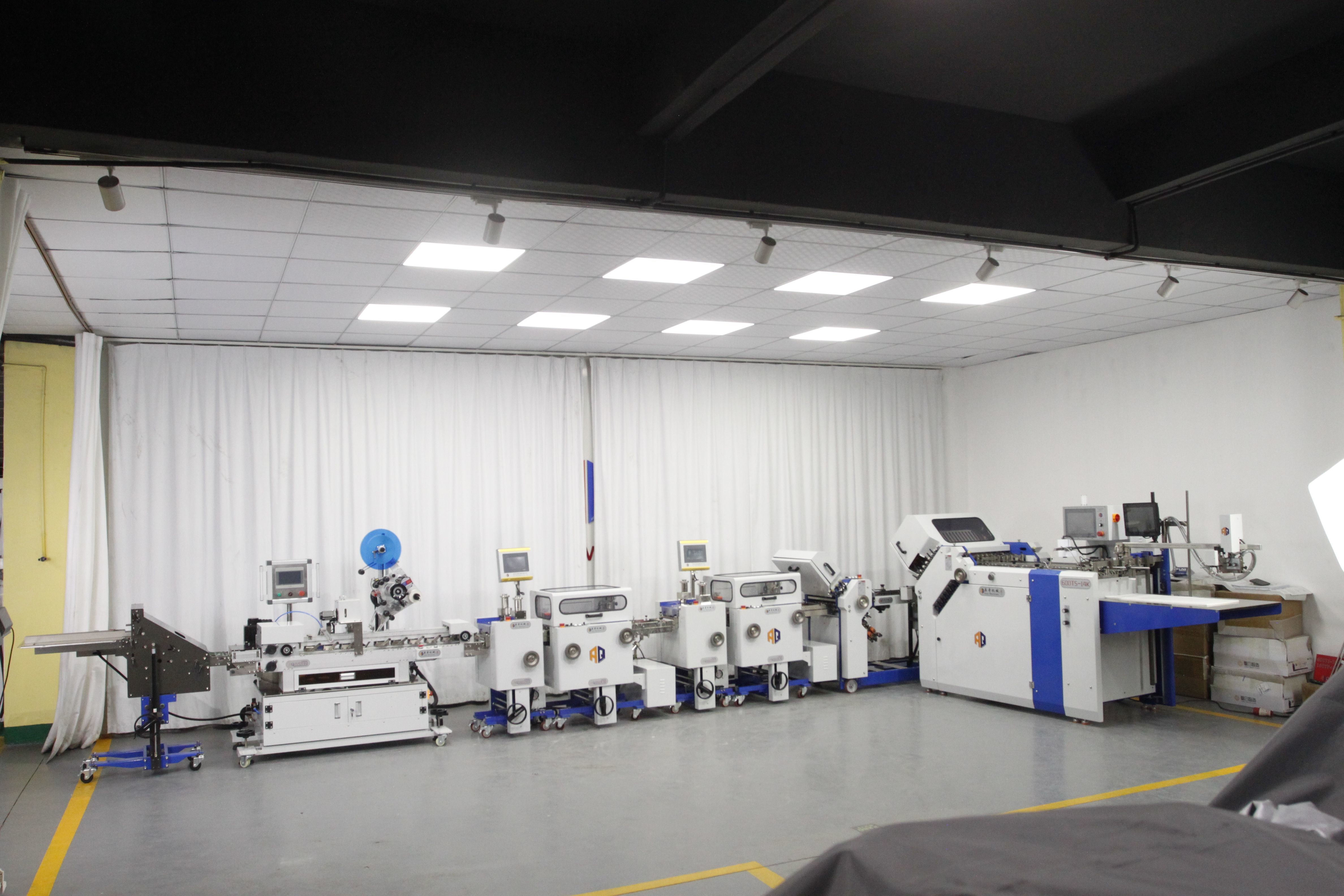

AOQI Paper Processing Machine Pharmaceutical Outsert Leaflet Folding Machine System
This Flat pile feeder folding outsert system is designed to handle light-weight pharmacetical and miniature leaflet folding . In order to meet different cutomers' needs , we have 480TS and 600TS for the first station . Different width format with 6-20 plates . The second station is to handle the thick and small-size leaflets with 4 or 6 buckle plates,also can be matched with pressing unit,parallel knife,labeling and vertical stacker, form a pharmaceutical outsert system .
Feature:
1. Belt driving is adopted to reduce the noise of the machine
2. Electrical system by PLC Schneider brand,more easy to operate
3. Equipped with ultrasonic double sheet detection; Paper ejection online; Jam detection
4. Equipped with sound insulation and delivery table
Station I : 600TS Paper Folder --- 600mm width format with 6-18 plates
480TS Paper Folder --- 480mm width format with 6- 20 plates
Station II: is to handle the thick and small-size leaflets with 4 or 6 plates.
Press unit
Max. infeed width : 160mm
Product Max. thickness : 10mm
Max. speed : 60m/min
voltage: 380V,075KW
Dimension(L*W*H) : 600*560*(1150-1250)mm
Weight : 185KG
Parallel knife
Max. infeed size:140*160(L*W)
Min. infeed size : 70*25(L*W)
Max. thickness : 12mm
Speed: 90m/min
Labeling Machine
1,Label Accuracy:±1mm
2,Max.labeling speed:170pcs/min
3,Applicable product length:30-200mm
4,Applicable product width:45-220mm
5,Applicable product thickness:1mm-20mm
6,Label Length:20-40mm
7,Label Width:8-30mm
8,Voltage:220V/50HZ
9,Dimensions(L*W*H):1800*600*1630mm
